LONG-RANGE WI-FI 6 PTP RADIO WITH 30 dBi GRID ANTENNA

Skyline P5-X30

Long-range 5 GHz Wi-Fi 6 point-to-point radio with an integrated 30 dBi grid antenna and 2.5GbE uplink

Skyline P5-X30·P5-X30

High-performance Wi-Fi 6 point-to-point radio with integrated 30 dBi high-gain grid antenna

Skyline P5-X30 is a high-gain point-to-point backhaul radio built for operators and integrators who need stable long-range wireless links with strong spectral efficiency and dependable outdoor performance. Based on a 5 GHz Wi-Fi 6 platform with 2×2 MU-MIMO and OFDMA, it is designed to deliver high-capacity backhaul for rural connectivity, enterprise interconnect, video surveillance transport, and fixed wireless infrastructure. With throughput above 1.7 Gbps and a 30 dBi integrated high-gain antenna, the Skyline P5-X30 is engineered to maintain focused, high-performance links over extended distances.

Designed for demanding field deployments, Skyline P5-X30 combines high directional gain with flexible network integration through 2.5 Gigabit Ethernet and Gigabit Ethernet interfaces, passive PoE or DC power input, and a rugged IP67 enclosure. Its enterprise-grade security, VLAN support, and centralized management capabilities make it well suited to carrier, enterprise, industrial, and critical infrastructure environments where reliability, resilience, and installation efficiency are essential.

Highlights & benefits

1.7 Gbps+ Throughput

Wi-Fi 6 with 160 MHz channels and 1024-QAM (MCS 11) delivers over 1.7 Gbps aggregate throughput for high-density backhaul.

30 dBi High-Gain Grid Antenna

Integrated Φ60 cm dual-linear grid antenna with a tight 6°×6° beam maximises range and minimises interference from adjacent links.

2×2 MU-MIMO / OFDMA

Wi-Fi 6 MU-MIMO and OFDMA simultaneously serve multiple streams, reducing latency and improving spectral efficiency.

WPA3-SAE Encryption

WPA3-SAE, WPA2-PSK, and AES/TKIP encryption ensure all wireless transmissions are fully protected.

IP67 + 8 kV Surge Protection

Fully weatherproof IP67 enclosure with built-in 8 kV surge protection operates from -30°C to 60°C in any environment.

2.5GbE + 1GbE Interfaces

2.5 Gigabit Ethernet plus a secondary 1 GbE port, with PoE 22–56V or DC 12V input and under 15 W consumption.

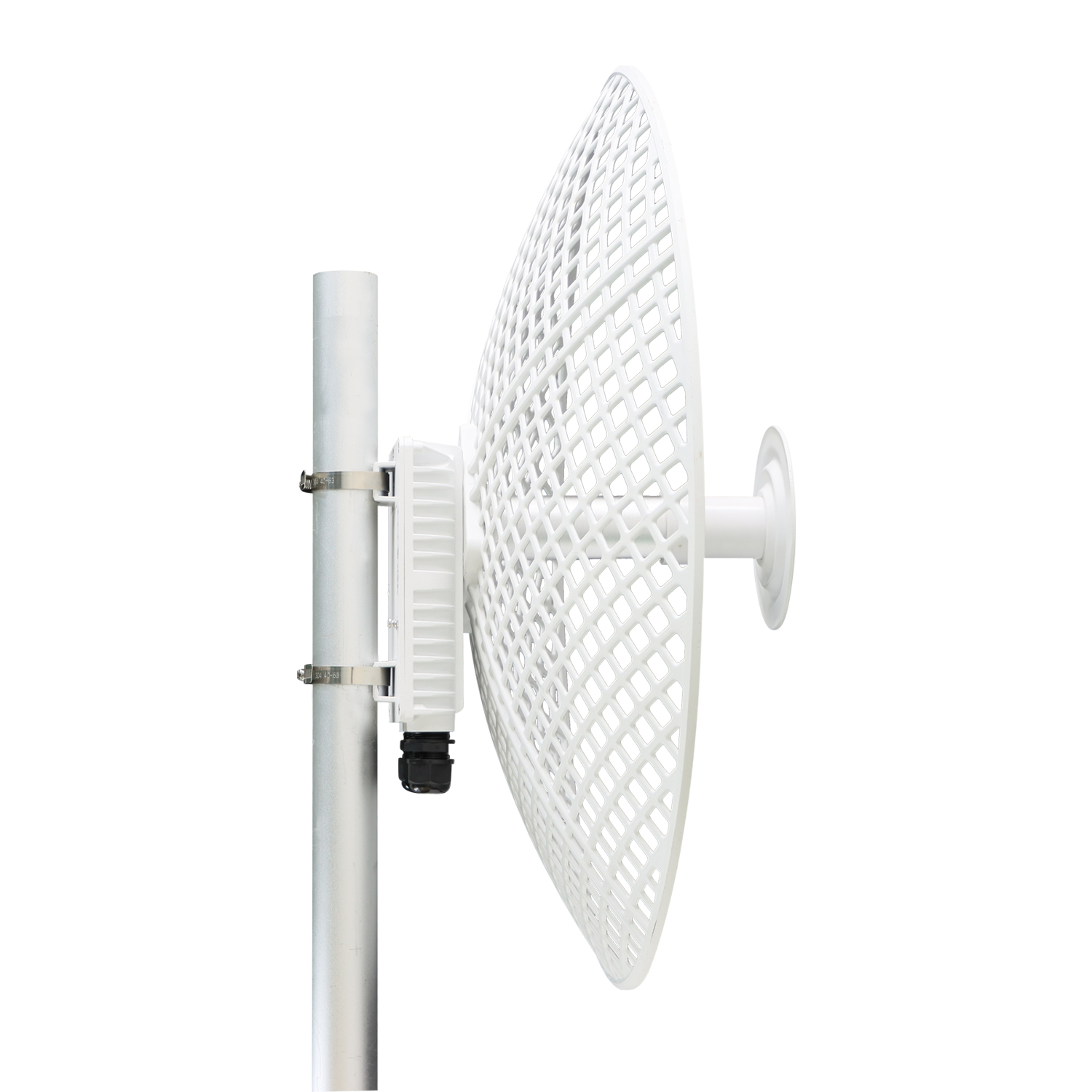

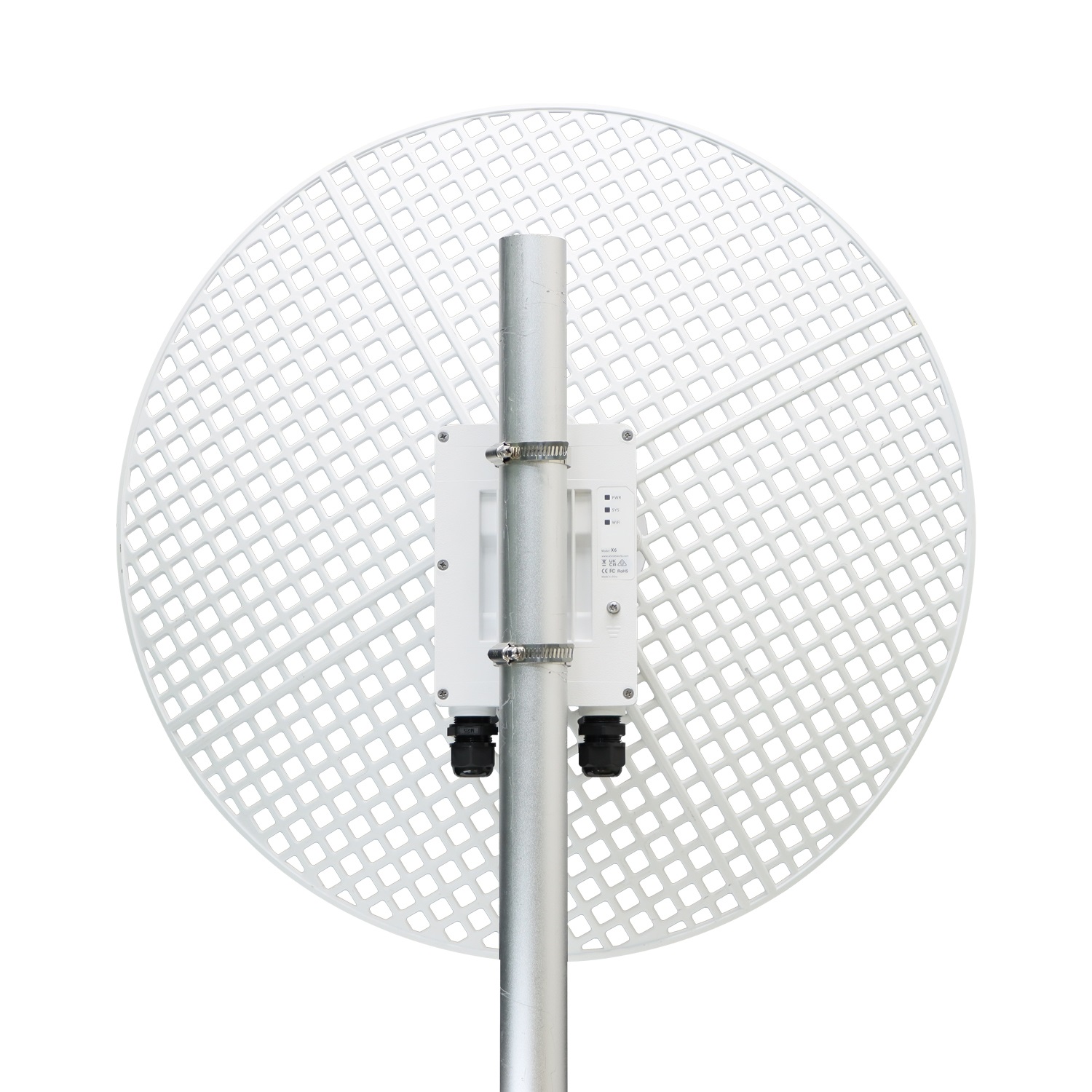

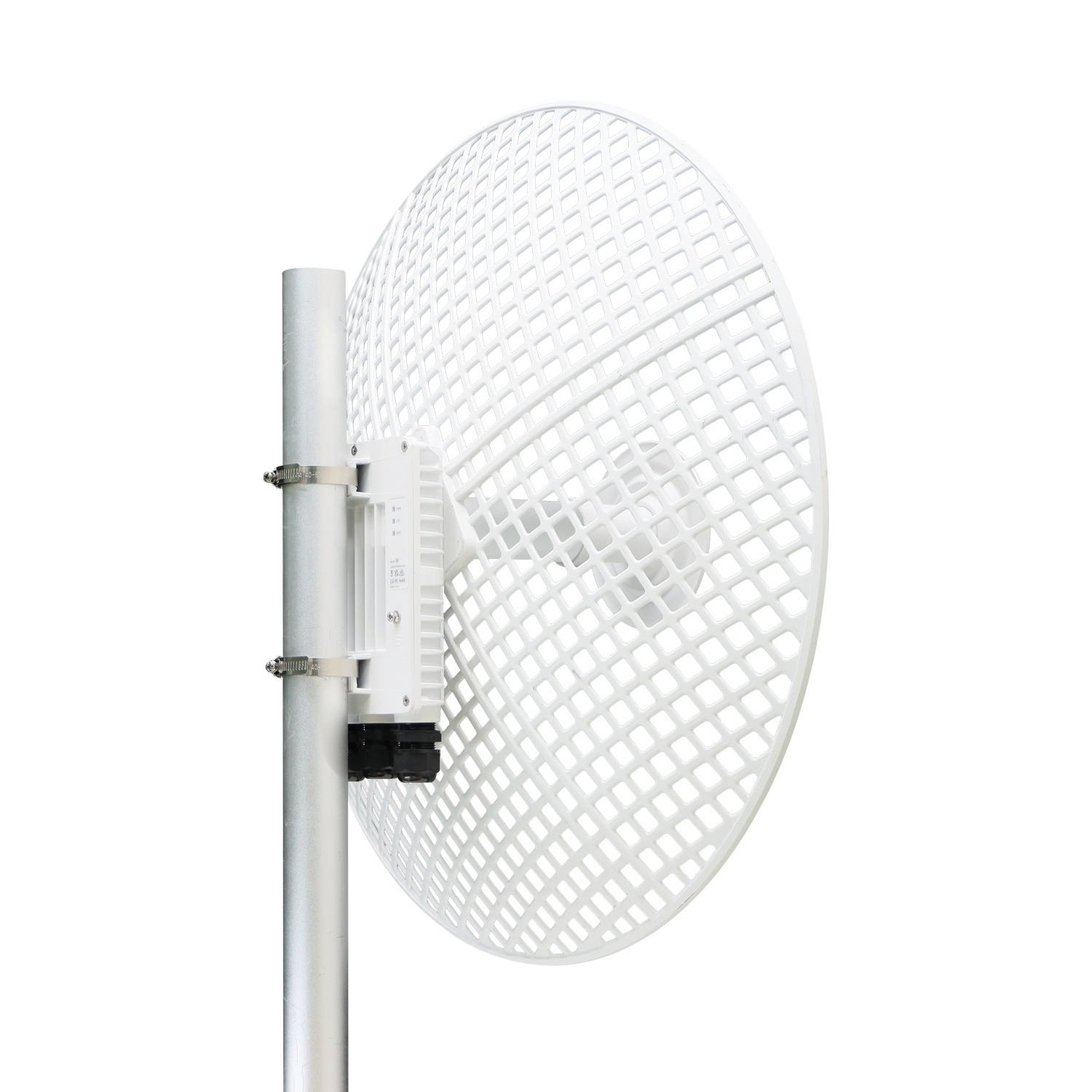

Gallery

Key characteristics

Standard	Wi-Fi 6 / 802.11ax
Frequency Band	5.1–5.8 GHz (5180–5825 MHz)
Channel Bandwidth	20 / 40 / 80 / 160 MHz
MIMO	2×2 MU-MIMO / OFDMA
Modulation	MCS 0–11 (BPSK → 1024-QAM)
Max Throughput	1.7 Gbps+
TX Power	29 dBm @20MHz / 26 dBm @160MHz
RX Sensitivity	-95 dBm @20MHz / -86 dBm @160MHz
Antenna Gain	30 dBi Dual Linear
Beam Width	E: 6° / H: 6°
Antenna Size	Φ60 cm
Interfaces	2.5GbE + 1GbE
Power	PoE 22–56V / DC 12V — <15W
Processor	Qualcomm Dual-core @ 1 GHz
Encryption	WPA3-SAE, WPA2-PSK, AES/TKIP
Management	HTTP/HTTPS, SNMP, SSH
QoS	Voice / High / Low — DSCP, CoS, VLAN
IP Rating	IP67
Surge Protection	8 kV
Operating Temp.	-30°C to +60°C
Weight	4.5 kg
Dimensions	Φ60 cm × 19 cm
