M20

Wi-Fi 7 point-to-point backhaul radio with Multi-Link Operation across simultaneous 5 GHz and 6 GHz bands

M20·OR-5600D

Professional-grade MLO Wi-Fi 7 point-to-point backhaul radio

M20 is a professional-grade point-to-point backhaul radio built for operators and integrators who need higher capacity, stronger resilience, and faster deployment in modern wireless infrastructure. Powered by Wi-Fi 7 with Multi-Link Operation, it uses the 5 GHz and 6 GHz bands simultaneously to increase throughput, improve link stability, and support demanding backhaul, enterprise interconnect, and last-mile extension scenarios. With up to 2.882 Gbps per band, a 20 dBi integrated directional antenna, and link distances of up to 15 km, M20 is designed for high-performance outdoor connectivity in real-world conditions.

Designed for seamless integration into next-generation network environments, M20 combines a 2.5 Gigabit Ethernet port and a 10G SFP+ uplink with secure, standards-based management and deployment features. Its Qualcomm-based platform, IP67 die-cast aluminum enclosure, PoE power support, and wide operating temperature range make it well suited to carrier, enterprise, smart city, and critical infrastructure deployments where reliability, weather resistance, and operational simplicity matter.

Highlights & benefits

Wi-Fi 7 MLO Technology

Multi-Link Operation simultaneously bonds 5 GHz and 6 GHz bands for maximum throughput and built-in link redundancy.

2.882 Gbps Per Band

Up to 2.882 Gbps throughput per band using 802.11be 160 MHz channels and advanced modulation schemes.

15 km Maximum Range

Integrated 20 dBi directional antenna with 20°×20° beam width enables stable point-to-point links up to 15 km.

WPA3-SAE Encryption

Latest WPA3-SAE and WPA2-PSK security protocols ensure all backhaul transmissions are fully encrypted.

IP67 All-Weather Enclosure

Die-cast aluminum housing rated IP67 withstands -40°C to +55°C and wind loads up to 422 N at 200 km/h.

2.5GbE + 10G SFP+

Dual high-speed interfaces — 2.5 Gigabit Ethernet and 10G SFP+ — for flexible integration into any network core.

Gallery

Key characteristics

Standard	802.11n/ac/ax/be (Wi-Fi 7)
Frequency Bands	5 GHz & 6 GHz (MLO)
Channel Bandwidth	20 / 40 / 80 / 160 MHz
Max Throughput	2.882 Gbps / band
Max Range	15 km
Antenna Gain	20 dBi (E:20° / H:20°)
RF Power	26 dBm
Interfaces	2.5GbE + 10G SFP+
Processor	Qualcomm Quad @ 1.5 GHz
Memory	512 MB DDR4
Power	48 VDC / PoE 802.3af/at — 25 W max
Encryption	WPA2-PSK, WPA3-SAE
Management	HTTP/HTTPS, SNMP, SSH
IP Rating	IP67
Operating Temp.	-40°C to +55°C
Wind Load	422 N @ 200 km/h

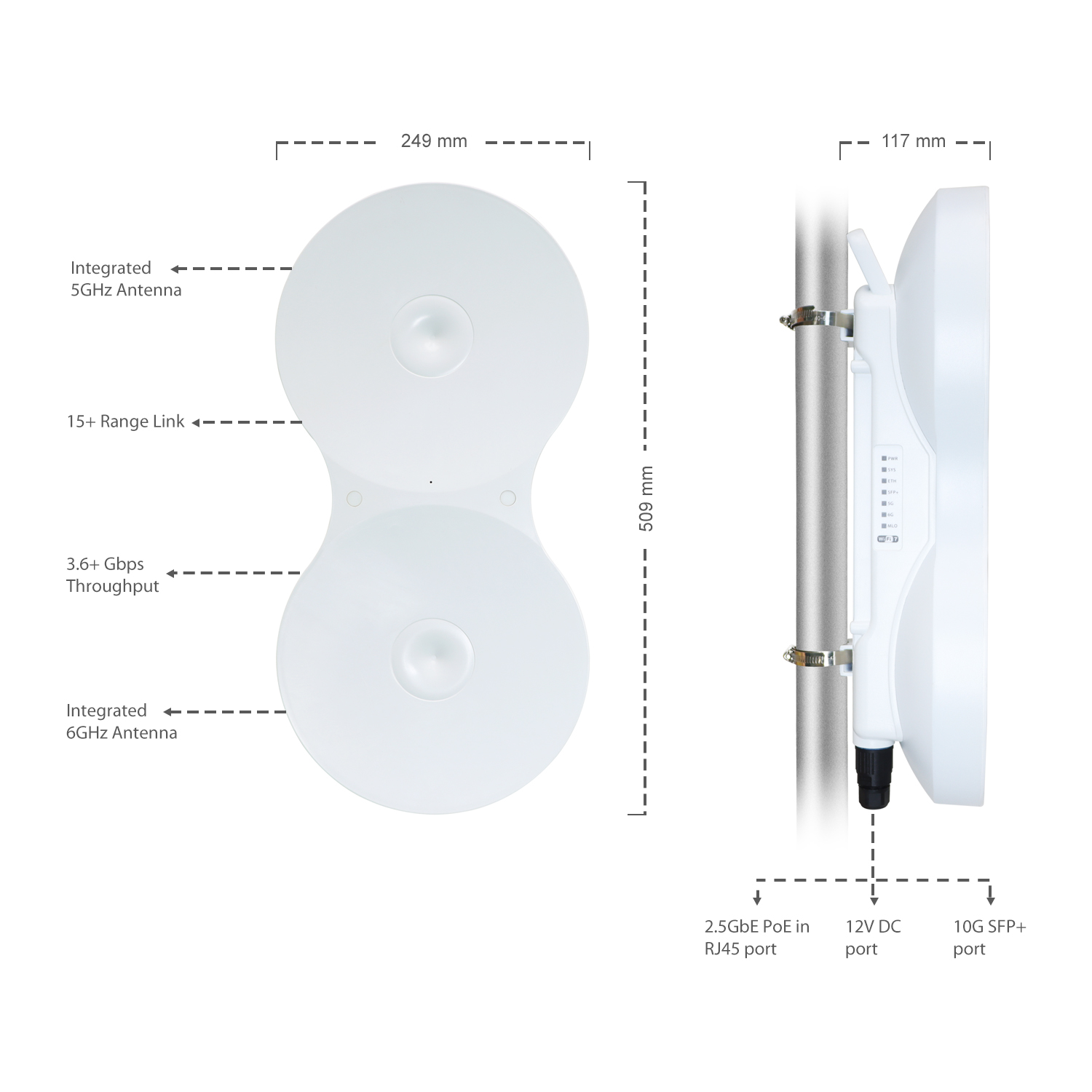

Dimensions	508 × 248 × 118 mm
Weight	3.8 kg
Mount	Pole straps 30–90 mm
