DUAL-BAND AX3000 OUTDOOR WI-FI 6 ACCESS POINT

Outdoor AX

AX3000 dual-band outdoor Wi-Fi 6 access point with IP67 protection and controller-ready deployment

Outdoor AX·AP-3000O

Dual-band outdoor Wi-Fi 6 access point with WisCloud controller support and one-minute deployment

The Outdoor AX is a professional outdoor Wi-Fi 6 access point delivering AX3000 dual-band concurrent performance — 574 Mbps on 2.4GHz and 2402 Mbps on 5GHz — powered by the enterprise-grade Qualcomm IPQ5018+QCN6102 chipset with 512MB RAM. Its four 6dBi integrated antennas provide wide-area coverage, while pole-mount installation and one-minute network configuration enable rapid field deployment.

The Outdoor AX supports both Fat AP and Fit AP operational modes, allowing it to work standalone or be managed centrally by the WisCloud controller for unlimited-scale AP deployments. A single master AP can control multiple units across a site. Powered via standard 802.3af/at PoE (max 18W), it operates from -40°C to +60°C with IP67 weatherproofing, 6kV lightning protection, and 16kV ESD protection. CE, FCC, and RoHS certified for global deployments.

Highlights & benefits

AX3000 Dual-Band Wi-Fi 6

574 Mbps on 2.4GHz and 2402 Mbps on 5GHz deliver AX3000 aggregate throughput for high-density outdoor deployments.

WisCloud Unlimited Scalability

Managed by WisCloud controller for unlimited AP deployments — one master AP controls the entire site.

One-Minute Deployment

One-minute network configuration and standard 802.3af/at PoE power for the fastest possible field installation.

6kV Lightning + 16kV ESD

Industry-grade 6kV lightning protection and 16kV ESD shielding for reliable operation in the harshest outdoor conditions.

IP67 · -40°C to +60°C

Fully sealed IP67 enclosure operates across an extreme temperature range from -40°C to +60°C for any climate.

Fat AP & Fit AP Modes

Flexible Fat AP (standalone) or Fit AP (controller-managed) modes adapt to any network architecture.

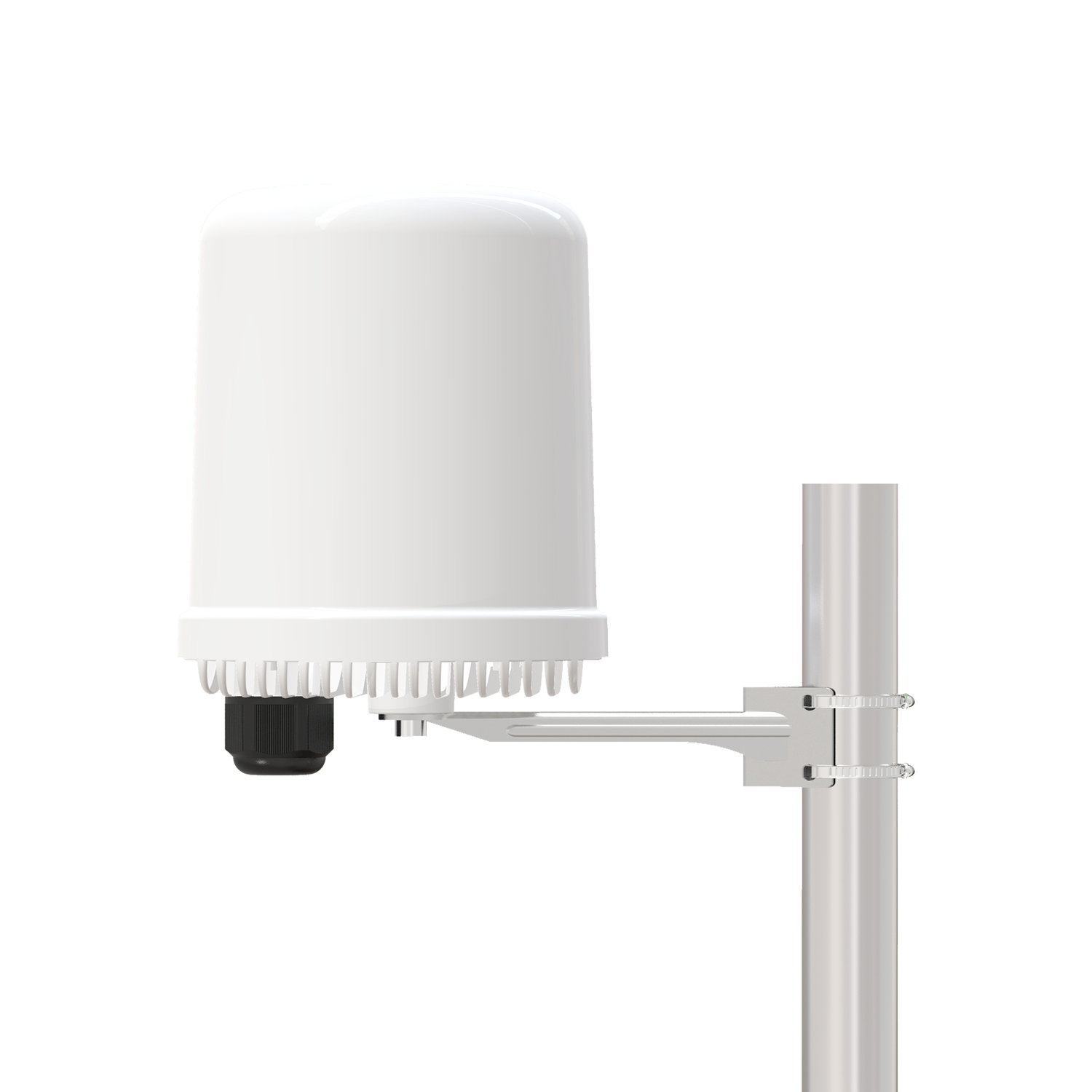

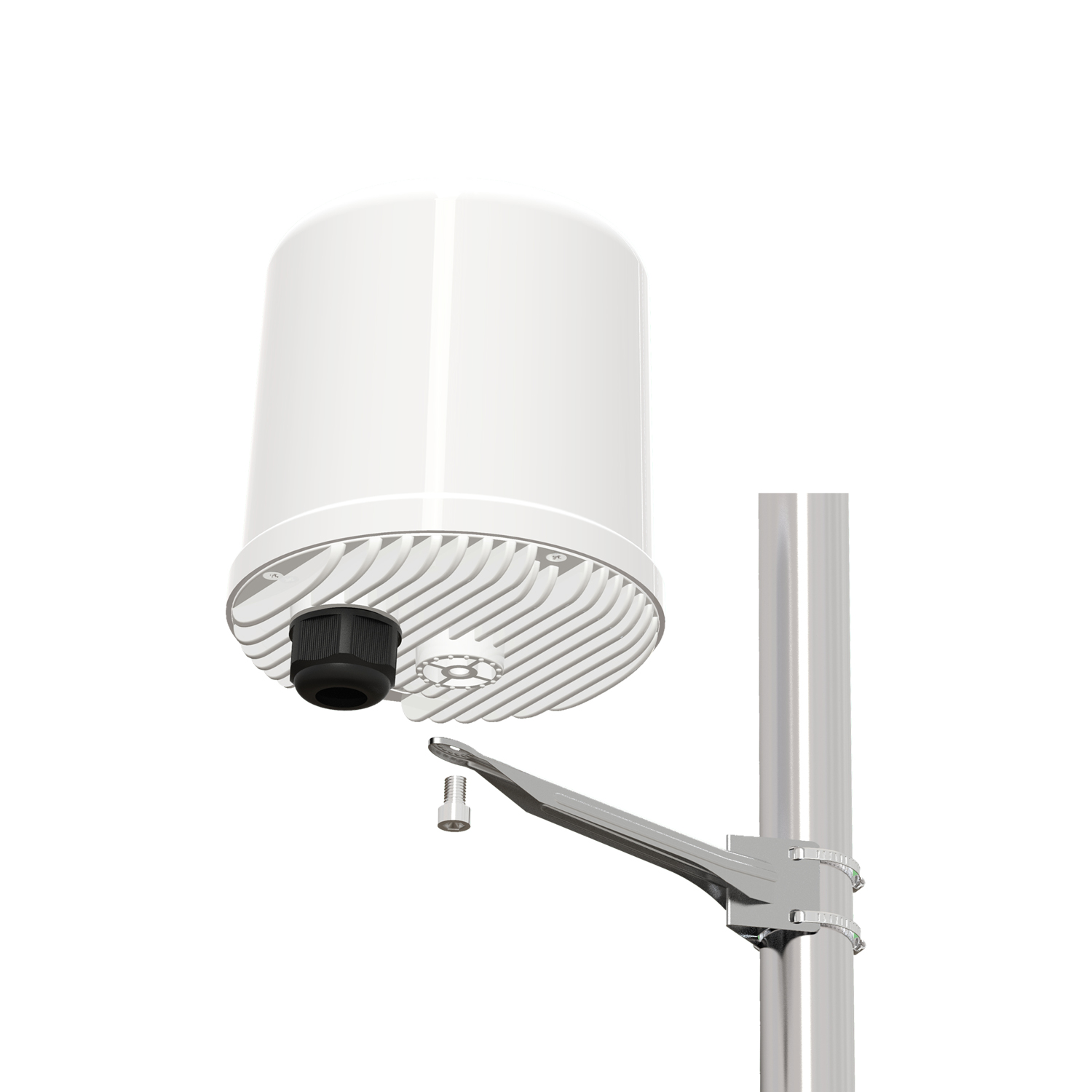

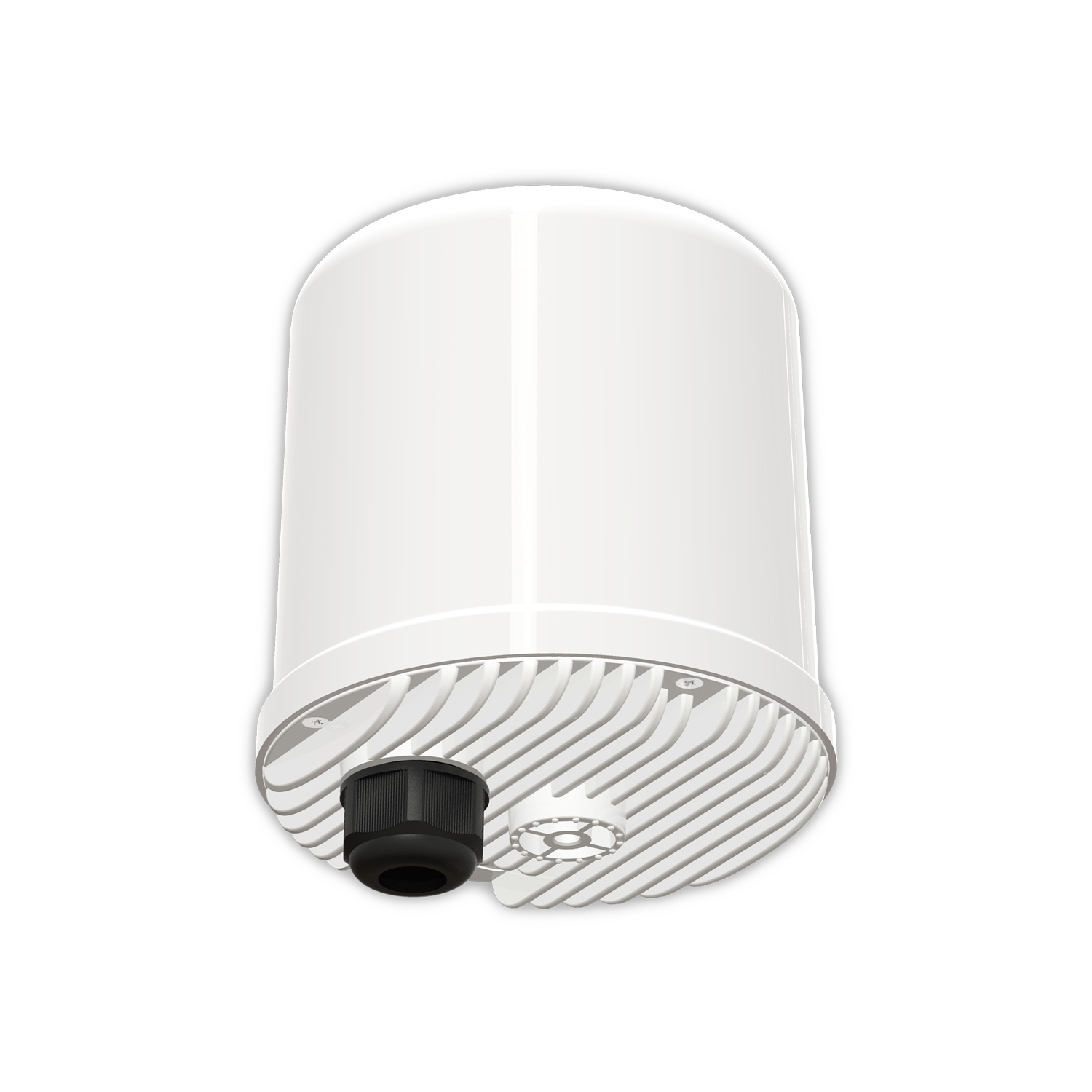

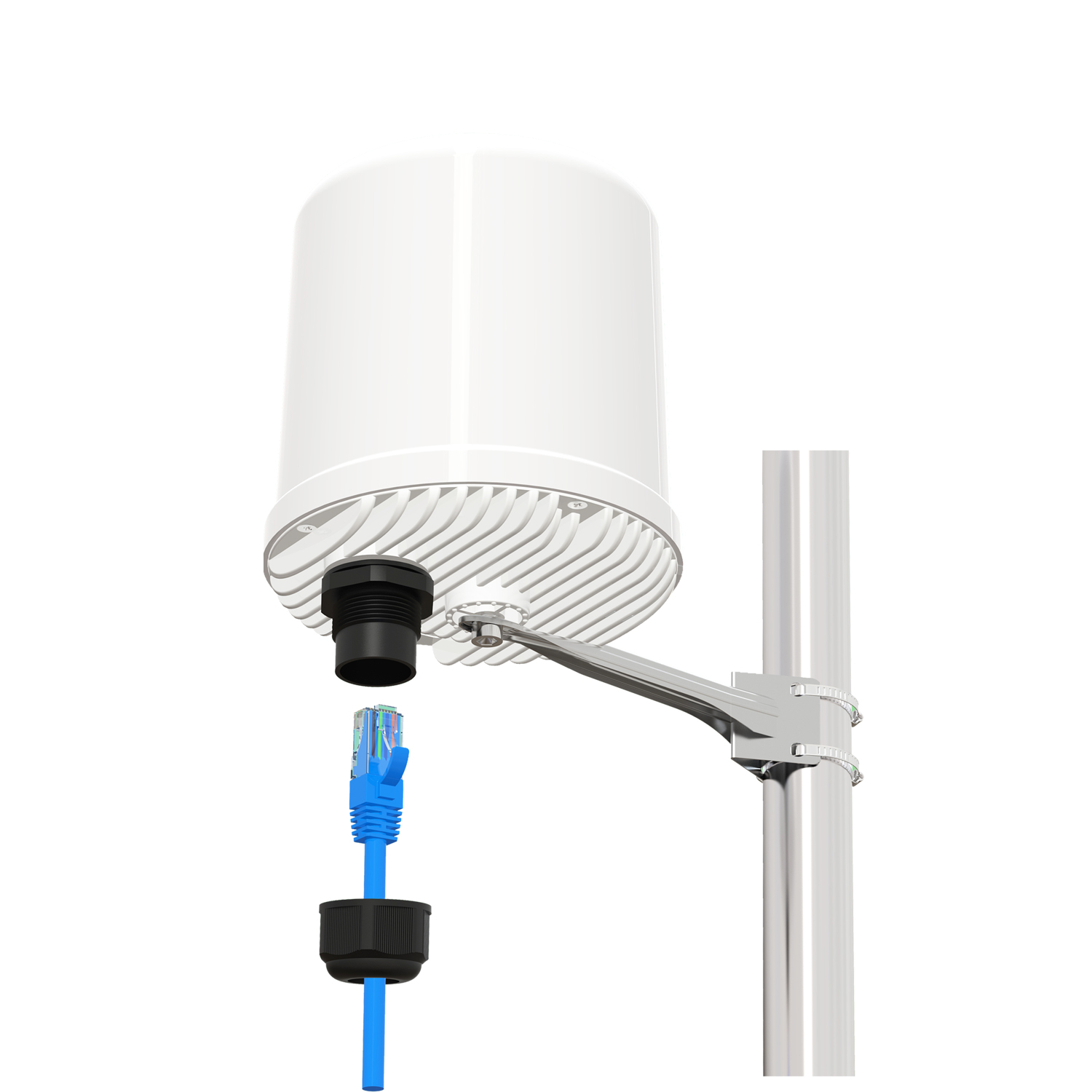

Gallery

Key characteristics

Standard	802.11b/g/n/ac/ax (Wi-Fi 6)
2.4GHz Max Rate	574 Mbps
5GHz Max Rate	2402 Mbps
TX Power	23 dBm
Antenna	4× 6 dBi integrated
Interface	1× GbE RJ45
PoE Input	802.3af/at
Max Power	18W
CPU	Qualcomm IPQ5018 + QCN6102
RAM	512 MB
Flash	16 MB + 128 MB
Operating Modes	Fat AP, Fit AP (WisCloud)
Lightning Protection	6kV
ESD Protection	16kV
IP Rating	IP67
Operating Temp.	-40°C to +60°C
Dimensions	φ120 × 147 mm
Weight	0.8 kg
Mounting	Pole mount
Certifications	CE, FCC, RoHS
