COMPACT WI-FI 6 PTP PANEL RADIO WITH 25 dBi ANTENNA

Panel 25

Compact 5 GHz Wi-Fi 6 point-to-point backhaul radio with a 25 dBi integrated panel antenna for 8 km+ links

Panel 25·OR-5250P

Wi-Fi 6 four-stream outdoor backhaul radio with integrated 25 dBi linear panel antenna

Panel 25 is a compact, high-performance point-to-point backhaul radio designed for operators and integrators who need strong throughput, focused beam control, and reliable outdoor performance in a streamlined form factor. Built on a 5 GHz Wi-Fi 6 platform with four-stream 4×4 MU-MIMO and support for up to 160 MHz channels, it is engineered for demanding wireless backhaul, enterprise interconnect, industrial networking, and last-mile extension projects. With an integrated 25 dBi linear panel antenna, narrow 11°×11° beam, and link distances of 8 km and beyond, Panel 25 is optimized for stable long-range connectivity in interference-sensitive environments.

Designed for modern network integration, Panel 25 combines 2.5 Gigabit Ethernet and Gigabit Ethernet interfaces with passive PoE input, enterprise management protocols, and a rugged IP65-rated enclosure for consistent field deployment. Its Qualcomm-based architecture, low power consumption, surge protection, VLAN support, and secure wireless management make it well suited to carrier, campus, industrial, smart city, and telecom backhaul applications where uptime, installation efficiency, and operational control are critical.

Highlights & benefits

4804 Mbps Wireless Data Rate

Four-stream 4×4 MU-MIMO with 160 MHz channels and 1024-QAM modulation delivers 4804 Mbps for the most demanding backhaul links.

25 dBi Integrated Panel Antenna

Built-in 25 dBi dual-linear panel antenna with a narrow 11°×11° beam for high-gain, long-range, interference-free point-to-point links.

8 km+ Link Distance

Designed for point-to-point links exceeding 8 km, ideal for campus, industrial, and carrier backhaul deployments.

WPA2-PSK / AES Encryption

WPA-PSK, WPA2-PSK, and AES/TKIP encryption protect all wireless transmissions against interception and tampering.

IP65 + 8 kV Surge Protection

Weatherproof IP65 enclosure with 8 kV surge protection and -30°C to 55°C operating range for harsh outdoor environments.

2.5GbE + 1GbE Interfaces

2.5 Gigabit Ethernet plus a secondary 1 GbE port with passive PoE 24–48V input and under 18 W consumption.

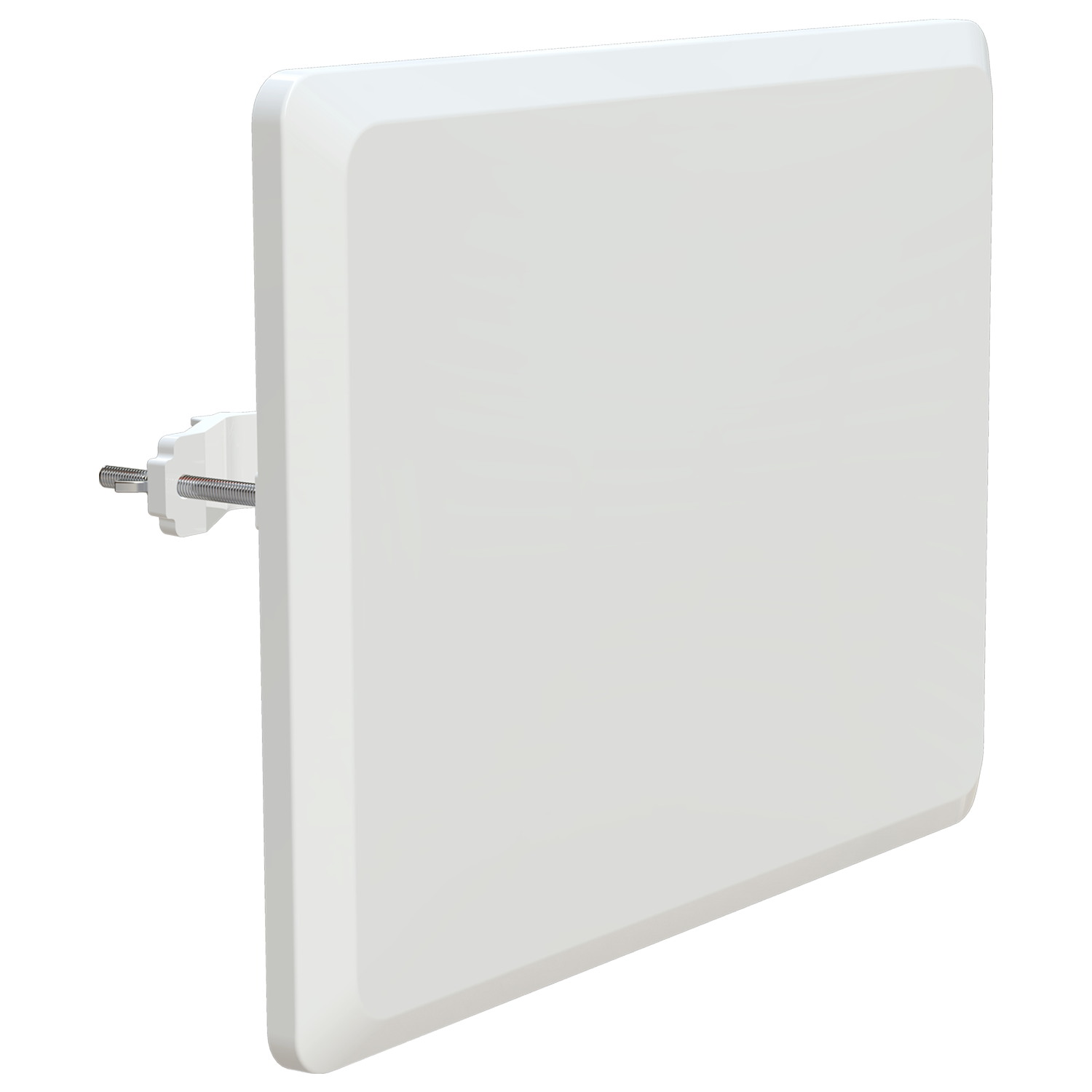

Gallery

Key characteristics

Standard	802.11a/n/ac/ax (Wi-Fi 6)
Frequency Band	5.1–5.9 GHz (5150–5850 MHz)
Channel Bandwidth	20 / 40 / 80 / 160 MHz
MIMO	4×4 MU-MIMO
Modulation	1024-QAM
Wireless Data Rate	4804 Mbps
TX Power	30 dBm
Antenna Gain	25 dBi Linear Panel
Beam Width	E: 11° / H: 11°
Max Range	8 km+
Interfaces	2.5GbE + 1GbE
Power	Passive PoE 24–48V — <18 W
Processor	Qualcomm Dual-core @ 1 GHz
Encryption	WPA2-PSK, WPA/WPA2-PSK (AES/TKIP)
VLAN	802.1Q
Management	HTTP/HTTPS, SNMP, SSH
IP Rating	IP65
Surge Protection	8 kV
Operating Temp.	-30°C to +55°C
Dimensions	400 × 300 × 45 mm
Weight	3 kg
