WI-FI 7 OUTDOOR CPE WITH 20 dBi INTEGRATED ANTENNA

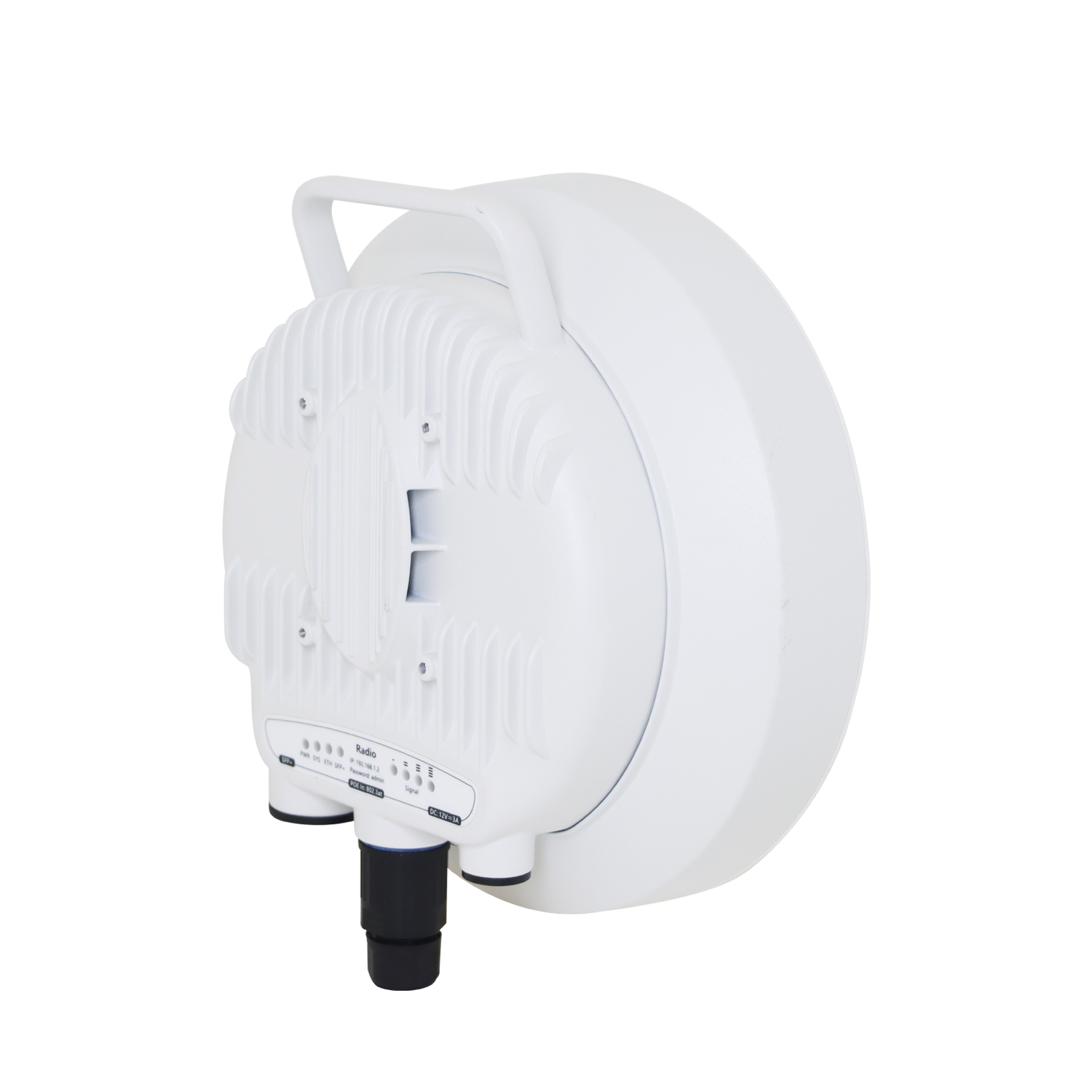

Skyline C5-X20 Pro

Compact Wi-Fi 7 outdoor CPE / PtP bridge with 20 dBi integrated antenna and 15 km reach

Skyline C5-X20 Pro·C5-X20 Pro

Compact Wi-Fi 7 outdoor CPE with 20 dBi integrated antenna, 5–6.4 GHz operation and 2.5 GbE + SFP+ uplinks

The Skyline C5-X20 Pro is a next-generation Wi-Fi 7 (802.11be) outdoor CPE in a compact disc form factor. Built around a Qualcomm Quad-Core A53 platform with 2×2 MIMO across the 5.15–6.425 GHz range, it delivers 2.3 Gbps+ throughput over outdoor point-to-point links — supporting channel widths from 20 MHz all the way to 320 MHz.

The integrated 20 dBi dual-linear parabolic antenna (E30°/H30° beam) provides focused gain across the 5.1–7.125 GHz band, while the IP67 die-cast aluminium enclosure and -30 °C to +60 °C operating range cover demanding outdoor environments. Dual high-speed interfaces — 2.5 GbE plus SFP+ at 2.5 Gbps — and 802.3at PoE (or DC 12 V) keep field integration straightforward, with management through the embedded web UI or Ainsora Atlas Cloud.

Highlights & benefits

Wi-Fi 7 — 2.3 Gbps+ throughput

802.11be with channel widths up to 320 MHz delivers 2.3 Gbps+ over real-world outdoor links.

20 dBi Integrated Parabolic Antenna

Dual-linear-polarised parabolic dish with E30°/H30° beam covers the 5.1–7.125 GHz band for focused PtP gain.

15 km Backhaul Range

Optimised for outdoor point-to-point bridge links of up to 15 km in clear line-of-sight conditions.

2.5 GbE + SFP+ 2.5 Gbps

Dual high-speed interfaces enable flexible integration into modern access and aggregation networks.

WPA3-SAE Security

WPA2-PSK, WPA3-SAE, and AES/TKIP encryption secure every wireless session.

IP67 Die-Cast Aluminium

Die-cast aluminium IP67 enclosure with 6 kV surge protection operates from -30 °C to +60 °C.

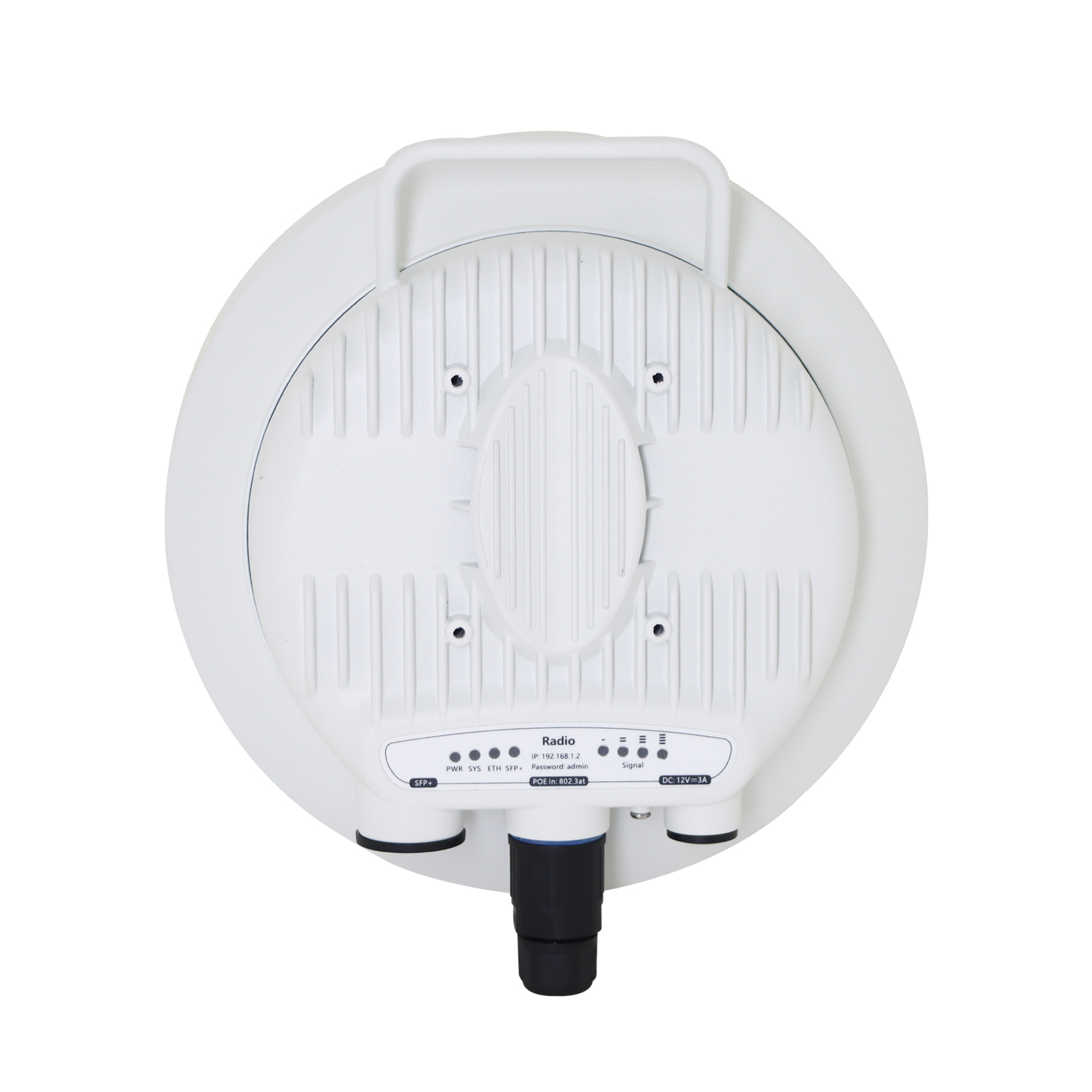

Gallery

Key characteristics

Standard	Wi-Fi 7 / 802.11be
Frequency Band	5150–6425 MHz
Channel Bandwidth	20 / 40 / 80 / 160 / 320 MHz
MIMO	2×2
Max Throughput	2.3 Gbps+
Max Range	15 km
TX Power	up to 26 dBm
Antenna Gain	20 dBi dual-linear parabolic
Beam Width	E: 30° / H: 30°
Antenna Range	5.1 – 7.125 GHz
Material	Die-cast aluminium
Interfaces	1× 2.5 GbE + 1× SFP+ 2.5 Gbps
Processor	Qualcomm Quad-Core A53 @ 1.1 GHz
Power	PoE 802.3at or DC 12 V — <16 W
Encryption	WPA2-PSK, WPA3-SAE, AES/TKIP
VLAN / DHCP	802.1Q / Server, Client
Network Mode	Bridge / Router
Firewall	Port Forwarding, DMZ, ACL
Management	Web, Ainsora Atlas Cloud
Surge Protection	6 kV
IP Rating	IP67
Operating Temp.	-30 °C to +60 °C
Dimensions	Φ24 cm × 10.9 cm
Weight	1.5 kg
